Senko SI- H100 PUMPED Fixed gasdetector

SENKO SI-H100 FIXED GASDETECTOR

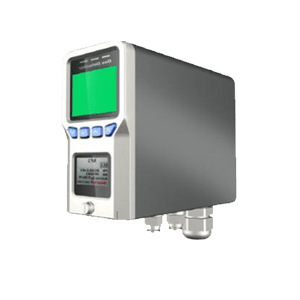

Senko SI-H100 pumped fixed gasdetector

SI-H100 measures sample gas by sensor cartridge in the case upon suction remotely on a real time basis constantly. The monitor points up to 100 feet (30meters) away and shows alarm of dangerous concentration, fault situation, and so on, upon attaching on the wall. SI-H100 assists to prevent or control a variety of gas related accidents including toxic, flammable gases in a plant providing reliable sensor technology.

Sensor(s): O2, CO , SO2, H2, H2S CL2 , VOC , and many more.
Brand: Senko
Part No: SI-H100

More information

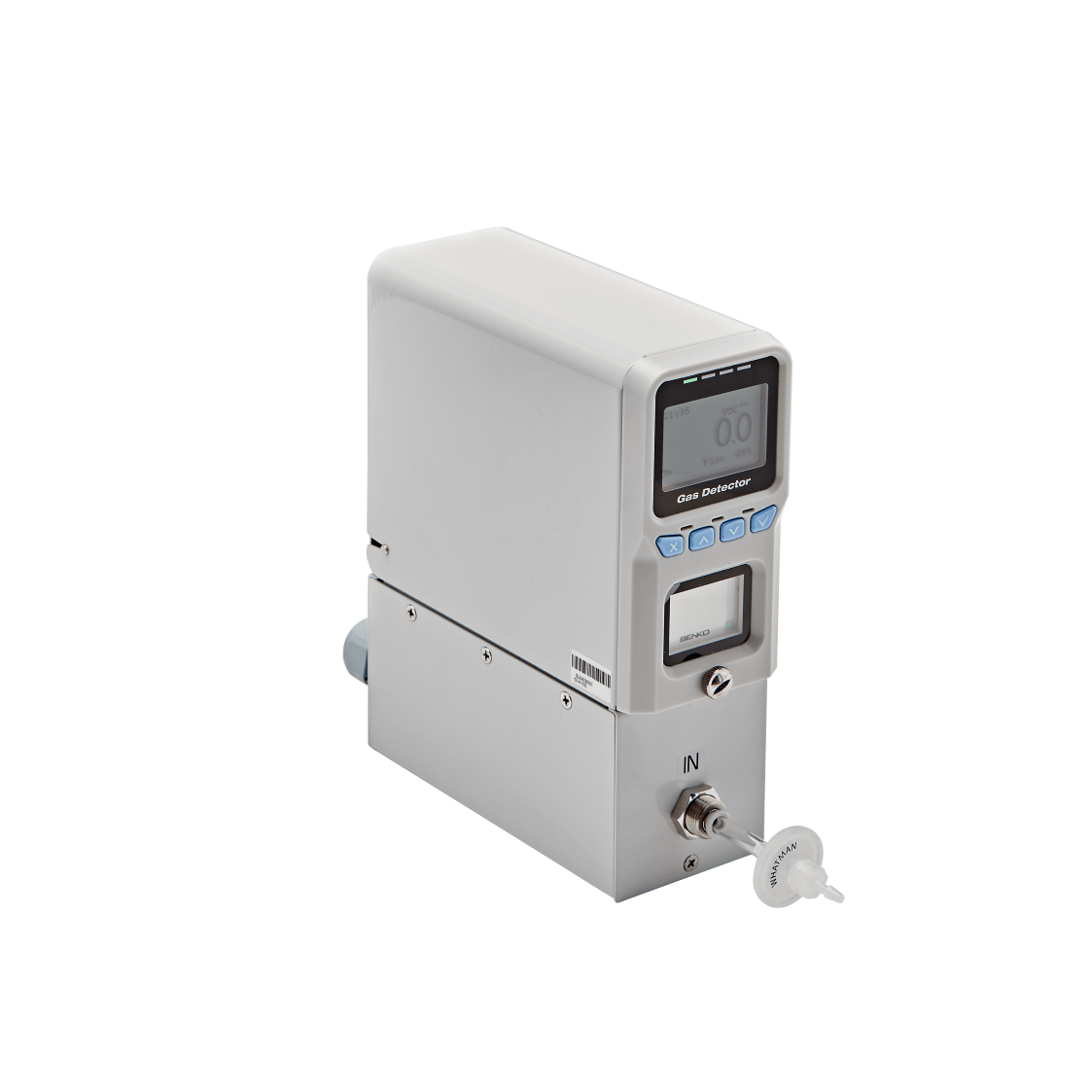

Senko SI-H100 pumped fixed gasdetector

SI-H100 measures sample gas by sensor cartridge in the case upon suction remotely on a real time basis constantly. The monitor points up to 100 feet (30meters) away and shows alarm of dangerous concentration, fault situation, and so on, upon attaching on the wall. SI-H100 assists to prevent or control a variety of gas related accidents including toxic, flammable gases in a plant providing reliable sensor technology.

Pyrolyzer option can be installed  underneath  the standard SI-H100. for detection and measurement through thermal decomposition in case of substances that do not have a gas sensor that can be generally detected, such as NF3.

It can be supplied with sensors for Flammable gases (Catalytic), hydrogen sulphide, carbon monoxide, hydrogen, ammonia, sulphur dioxide, methane (infra red), Pentane (infra red), nitrogen dioxide, carbon dioxide (infra red), hydrogen chloride, Phosphine, Silane, Boron Trichloride, VOC (PID), hydrogen peroxide, hydrogen fluoride, and oxygen.

Features:

• Simple to install, easy to use the product.
• Extractive pump system which has 2years life time (Sampling up to 30M).
• Smart sensor cartridge with on board.
• Large bright graphic LCD based on Intuitive icon with various expressions.
• 3 built in relays for Alarm 1st , 2nd  and Fault.
• Ethernet (PoE) communication.
• Optional Pyrolyzer module.
• 4-20mA analog output with event reporting and fault.
• Modbus/TCP Ethernet can be easily connected to all control and alarm systems ports.
• Update the latest version of firmware available via the web.
• RS-485, TCP Ethernet to connect alarm system and communication.
•  Detects gas which is parts-per-billion(ppb) levels.

Quick specs:

  • sensors :O2, CO , SO2, H2, H2S CL2 , VOC , and many more.
  • 3 built in relays for Alarm 1st , 2nd  and Fault.
  • Warranty: 2 years
  • Ethernet (PoE) communication.
  • 4-20mA DC(3wire for combustible gas, 2wire for other gas)
  • Build in pump module
  • 9~34Vdc 600mA
  • 3 built in relays for Alarm 1st , 2nd  and Fault.
  • Size and weight: 124mm(H) X 65mm(W) X 155mm(D). 2.0 kg
